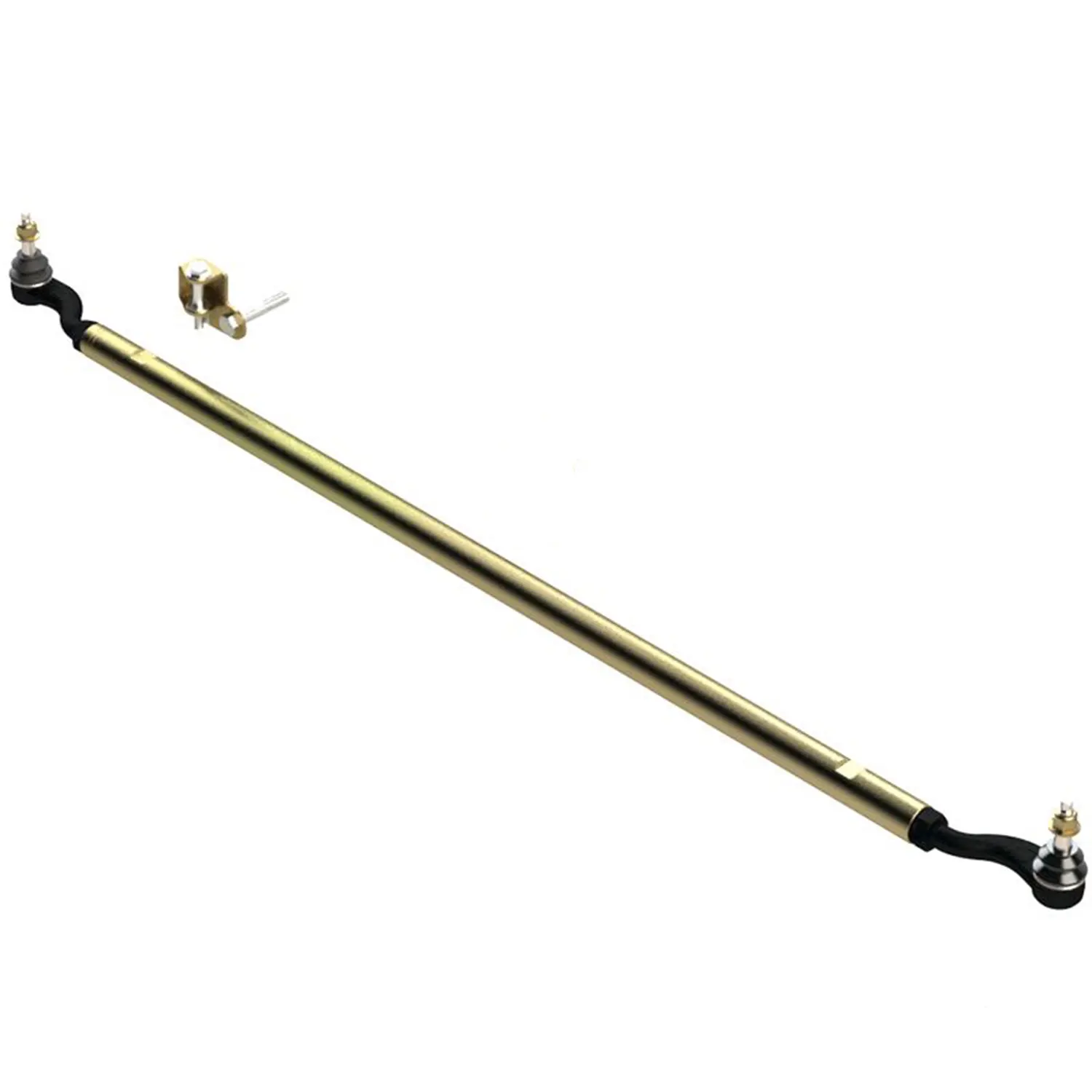

Tie Rod, JL Wrangler/JT Gladiator for the Rubicon ,|Max-Tow|4XE|High Altitude| ,Mojave| ,392 Edition.
Chromoly Dog-Legged Tie Rod for the Rubicon JL Wrangler/JT Gladiator is strength with style for your vulnerable steering system.
- Tubular 1.625”OD .375” wall ID 4130 Chromoly CDS
- Gold Zinc Chromate Finish
- 1-Ton Forged Heat Treated Off Set Dog Leg Rod Ends
- Rod End Design Controls Tie Rod Flop
- OE Taper Pin and lock nut for Exact Fitment
- Sealed with Durable Rubber Grease Boots
- Adjustable While Installed
- Includes HD Steering Stabilizer Bracket
- WORKS WITH JL/JT STOCK WHEEL BACKSPACING!
Chromoly Steel For Added Strength
Making a Tie Rod is easy, but we don’t do easy; we chose Normalized 4130 Chromoly 1.625”OD .375” wall tube that can take a beating without breaking (97,200 pound per square inch).
Dog Leg Tie Rod Ends
WORKS WITH STOCK BACKSPACING!
Boot Sealed – Keeps grease in and dirt out
Anti Flop Feature – Precision range of movement
Maximum Tire/Wheel Clearance – Correct steering radius
Massive 1-Ton Rod Ends – Provides additional strength
Over-sized 1 inch threads- More material at critical area
JL Specific OE Bolt Taper – Secure mount
Over-Sized, Forged, & Heat Treated Housing – Exclusive
Anti Flop Feature
This specially designed rod end has been engineered just for the JL Wrangler steering.
Full side to side range of motion ensures bind free steering when pushing the extremes of your Jeeps travel and articulation, while a limited “front to back” range of movement is built into the rod-end and eliminates the possibility of the offset to allow the tie-rod to “flop”.
Standard Tie Rod Mount
The MetalCloak Steering Stabilizer Tie Rod Mount will work with the Stock Tie Rod but was designed for the MetalCloak JK Tie Rod.
- CAD Formed 3/16″ Hot Rolled Steel Plate
- Easy Bolt-On Bracket (No Welding)
- Zinc Chromate Plate
Billet Tie Rod Mount (Optional)
The MetalCloak Billet Steering Stabilizer Tie Rod Mount is designed for the MetalCloak JK Wrangler, JL Wrangler & JT Gladiator Tie Rod. The billet clamp is fitted for 1.625″ outer diameter.
- CNC Aluminum Billet
- Two Piece Design
- Recessed Bolt Locations
- Laser Engraved “M” Logo
- Black Anodized Finish
Steering Stabilizer Mount
What’s In The Kit?
- Tie Rod
- Dog Leg Anti Flop Tie Rod Ends
- Steering Stabilizer Axle Mount
- Standard Tie Rod Mount or Billet Tie Rod Mount
- All Required Hardware
