MetalCloak Baller Joints HD Full Set – Jeep Wrangler JL & Gladiator JT
ر.س3,200.00
Upgrade the front axle of your Jeep with the MetalCloak Baller Joints HD – Part #1911, engineered specifically for the Jeep Wrangler JL/JLU and Jeep Gladiator JT.
Unlike conventional ball joint designs, MetalCloak Baller Joints use load-bearing upper and lower joints, helping distribute loads across both pivot points.
The system features heavy-duty Chromoly steel spindle and ball assemblies, hardened bearing surfaces and durable bearing races designed for demanding street and off-road use.
Both upper and lower joints feature adjustable preload, allowing them to be serviced as wear occurs rather than immediately replacing the complete assembly.
The sealed and greaseable construction helps protect the internal components from dirt and contaminants, while the rebuildable design provides a long-term serviceable solution for modified Jeeps.
Key Features
- Heavy Duty Upper & Lower Ball Joint Set
- Load-bearing upper and lower design
- Chromoly steel components
- Hardened bearing surfaces
- Heavy-duty bearing races
- Adjustable preload
- Greaseable design
- Multiple sealing points
- Rebuildable construction
- Designed for demanding off-road use
- MetalCloak service wrench included
- Made in USA
What’s Included
- Upper Baller Joints
- Lower Baller Joints
- MetalCloak Ball Joint Service Wrench
Complete set for the front axle.
In stock
Tech Support
For the life of the product
Satisfaction Guaranteed
No hassle return policy
Lowest Price
We'll match or beat any price
Free Shipping
on orders over 1000 SAR

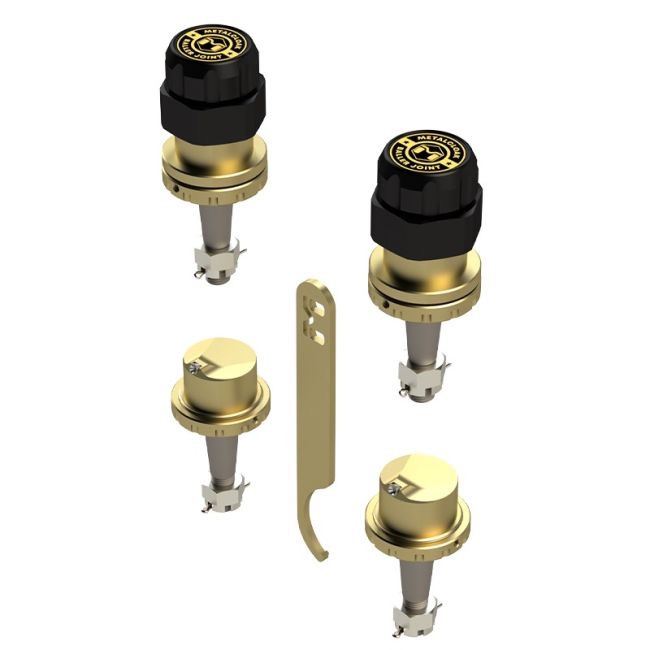

What's in the kit?
- Upper Ball Joints
- Lower Ball Joints
- Ball Joint Wrench
Upper & Lower "Baller" Ball Joints
MetalCloak offers the ONLY Ball Joints that are comprised of top level materials with ALL the best features contained in one package; this is the last ball joint you will need. Upper and Lower Load Bearing, Captured, Fully Sealed, Adjustable, In-Jeep rebuildable and made in the USA.

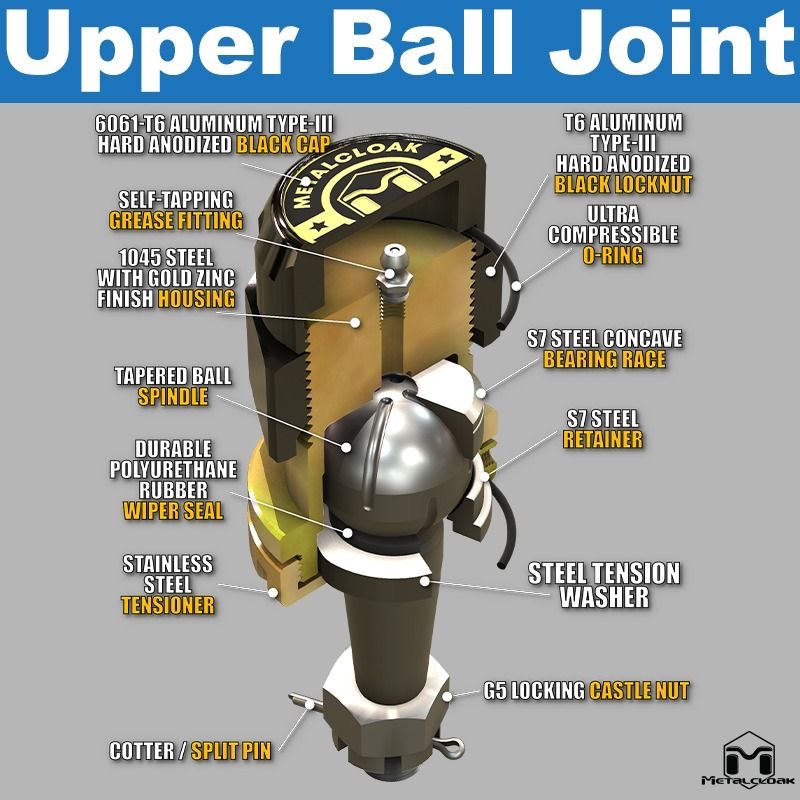

Upper Ball Joint Diagram
Load Bearing Joints
Pre-load on MetalCloak upper Ball Joints share force-loads from the lower joint and divide the load between both pivot locations unlike most "other" ball joints.
Thread Together Captured Design
Ball Joints press in from the bottom of the C. Aluminum lock nut and Top Cap Thread on to capture the joints so there is no possibility of the Joint pulling out.
Spindle & Ball Benefits
MetalCloak "Baller" ball joint Spindle/Ball units are formed of solid Chromoly steel for durability and then are Induction Hardened for incredible surface strength that resists wear. The oversized bearing surface provides maximum area to distribute force loads from on and off-road use and abuse. The induction hardening provides unsurpassed longevity for smooth bearing operation. The Baller Joint Spindle/Ball composition is the best you can get to absorb energy without possibility of fracture while maintaining an ideal hardened bearing surface that ensures a long service life; it's quality you can count on.
Lower "Baller" Ball Joint Diagram
Ball Joint Wrench
The included wrench is specially designed and laser cut to precisely fits the lower ball joint lock ring and allows for ease of installation. The wrench is made of laser cut 3/16" hot rolled steel, the tool is finished in gold zinc for a classic premium look and long lasting MetalCloak quality.
Hand Built and Made in America
The MetalCloak Upper and Lower "Baller" Ball Joints are each meticulously assembled in house with Hand Built craftmanship right here in the USA.
|
Items |
Details |
|---|---|
|
Compatibility |
2018 - Current JL Wrangler | 2019 - Current JT Gladiator |
|
Upper Ball Joint Cap / Upper Ball Joint Spindle |
6061 Aluminum Hex / Chromoly steel |
|
Upper Ball Joint Housing / Lower Ball Joint Cup |
1045 Steel / 1045 Steel |
|
Lower Ball Joint Spindle |
Chromoly steel |
|
Ball Joint Wrench |
3/16" Hot Rolled Steel |
|
Coating |
Gold Zinc | Clear Zinc | Red Anodize |
|
Installation Difficulty |
Moderate |
|
Body Modification |
None |
|
Installation Instructions |
| Brand | Metalcloak |
|---|
Only logged in customers who have purchased this product may leave a review.
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2018 - 2024 | Jeep | Wrangler (JL) | |
| 2019 - 2024 | Jeep | Gladiator (JT) |
Metalcloak stands at the forefront as the premier manufacturer of game-changing off-road and 4×4 aftermarket lift kits, suspension systems, fenders, body armor, rockers, and skid plates. At Metalcloak, they operate as a Systems-Based Company, adhering to a philosophy centered on developing seamlessly integrated systems. Their approach involves designing each individual part to not only function effectively but also enhance the overall system’s performance.
